Use the Get File Descriptors SDK Method (Tutorial)

Last updated 2026-05-07

Abbreviations Key

HISE		Human Immune System Explorer
`hp`		hisepy
IDE		integrated development environment
SDK		software development kit

At a Glance

This document explains how to use get_file_descriptors()(Python) | getFileDescriptors (R) to retrieve file-level metadata based on query criteria. It accepts a query dictionary with list-based filters and returns a dictionary of DataFrames, including descriptors, lab results, specimens, and survey data. You can query either public or private files using the is_public flag, but you must include fileType in the query when accessing nonpublic data. If you have questions or need help, contact Support.

When to Use This Method

Use get_file_descriptors() | getFileDescriptors() to load all file descriptors (file/sample/subject metadata) for a given file type:

Retrieve structured metadata about files that match specific criteria
Explore associated data like lab results, specimens, or survey responses alongside file descriptors
Build workflows that depend on filtering files by attribute (for example, file type or project)
Analyze or export file metadata in a tabular format for downstream processing
Establish a consistent retrieval method to work with public datasets or authenticated project data

SDK Method

The get_file_descriptors() signature is shown in the box below, and the method parameters follow. Click the tabs to toggle from Python to R.

Signature

Python signature

get_file_descriptors

Retrieves file descriptors based on user's query.

hp.get_file_descriptors(
    query_dict: dict = None,
    is_public: bool = False
    )

R signature

getFileDescriptors

Loads all file descriptors (file/sample/subject metadata) for a given file type.

getFileDescriptors(
    fileType,
    filter = NULL,
    toDF = FALSE
    )

Parameters

Python parameters

Parameter		Data type		Required or optional		Description
`query_dict`		`dict`		required		Dictionary object containing search parameters using Mongo query language. Default is `None`.
`is_public`		`bool`		required		If `True`, queries public files. Default is `False`.

R parameters

Parameter	Data type	Required or optional	Description
`fileType`	`string`	optional	Type of file to search for (e.g., "scRNA-seq-labeled", "FlowCytometry-supervised-stats").
`filter`	`list`	required	List filter to narrow the search. Same format as `"descriptors"` in `readResult` APIs, e.g., `list("cohort.cohortGuid" = c("FH1","CU1")`)
`toDF`	`bool`	required	Logical operator indicating whether to return the results as a list of `data.frame` values. Default is `FALSE`.

Get Help

If you get stuck during a get_file_descriptors() | readSubjects call, refer to the steps of this tutorial (examples are in Python unless otherwise specified). To use the baked-in help in your IDE, try one of the following commands. Still not working? Contact Support.

Python	R	Output
`help(hp.get_file_descriptors)`	`??getFileDescriptors`	Function signature, list of parameters, class, and a brief description of the method in a compact plain-text format
`hp.get_file_descriptors?`	`?getFileDescriptors`	Method signature, docstring (description), file location, and file type in more readable format
`hp.get_file_descriptors??`	`?hise::getFileDescriptors`	Signature, docstring, file path, a verbose set of metadata, and the source code for the method

Instructions

Import library

To get started, set up your environment to interact with HISE programmatically and access all available SDK functions. For details, see Use HISE SDK Methods and Get Help in the IDE .

Navigate to HISE, and use your organizational email address to sign in .
Open an IDE. For instructions, see Create Your First HISE IDE (Tutorial) .
To import hisepy, enter the following code into a new cell in your IDE.

# Import the Python SDK to enable programmatic access to HISE functions. import hisepy as hp

Define a query

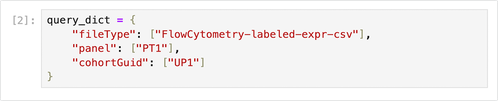

Use a query dictionary to specify which files to describe. All filter values must be lists. This example filters the returned file descriptors by file type, panel, and cohort GUID.
```
query_dict = {
    "fileType": ["FlowCytometry-labeled-expr-csv"],
    "panel": ["PT1"],
    "cohortGuid": ["UP1"]
}
```

NOTE
If you prefer, you can pass the dictionary contents directly in your get_file_descriptors() call. The approach shown above is recommended, however, because it lets you confirm the values before passing them in, reuse the query_dict in other SDK methods, or modify a single key and rerun the call as you iterate on your query.

df_dict = hp.get_file_descriptors(
    query_dict={
        "fileType": ["FlowCytometry-labeled-expr-csv"],
        "panel": ["PT1"],
        "cohortGuid": ["UP1"]
    }
)

Get file descriptors

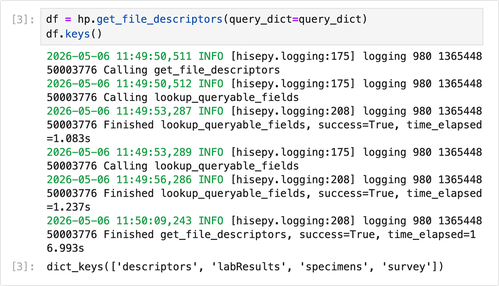

To retrieve file‑level metadata and related data frames, call get_file_descriptors() with your query.
```
df_dict = hp.get_file_descriptors(query_dict=query_dict)
df_dict.keys()
```
If matching files are found, df_dict.keys() returns entries that match the tables available for your query.

"descriptors"
"labResults"
"specimens"
"survey"

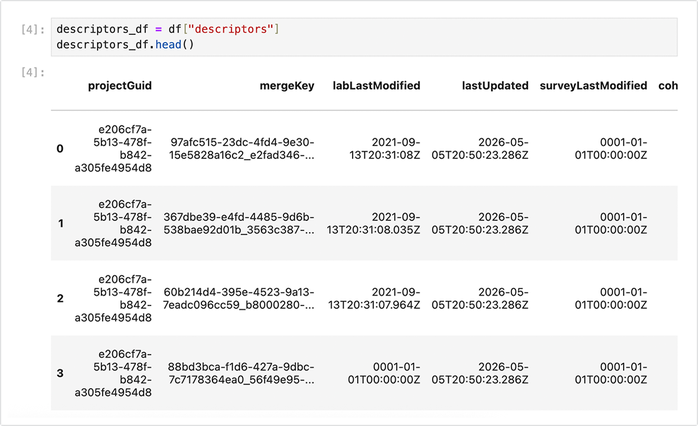

2. View the file descriptors table:
```
descriptors_df = df_dict["descriptors"]
descriptors_df.head()
```

Cache matching files (optional)

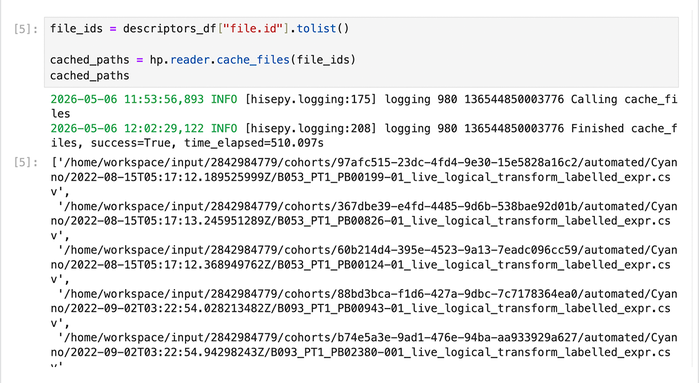

To work with the matching files in your IDE (for example, to open them or pass them to another analysis function), cache them locally using their file IDs.

Retrieve the files that match your query. You can use these local paths in downstream analysis or other SDK calls.
```
file_ids = descriptors_df["file.id"].tolist()

cached_paths = hp.reader.cache_files(file_ids)
cached_paths
```
